THERMAL & OPTICAL NETWORK CAMERA

THERMAL & OPTICAL NETWORK CAMERA

Model: W-DM80S

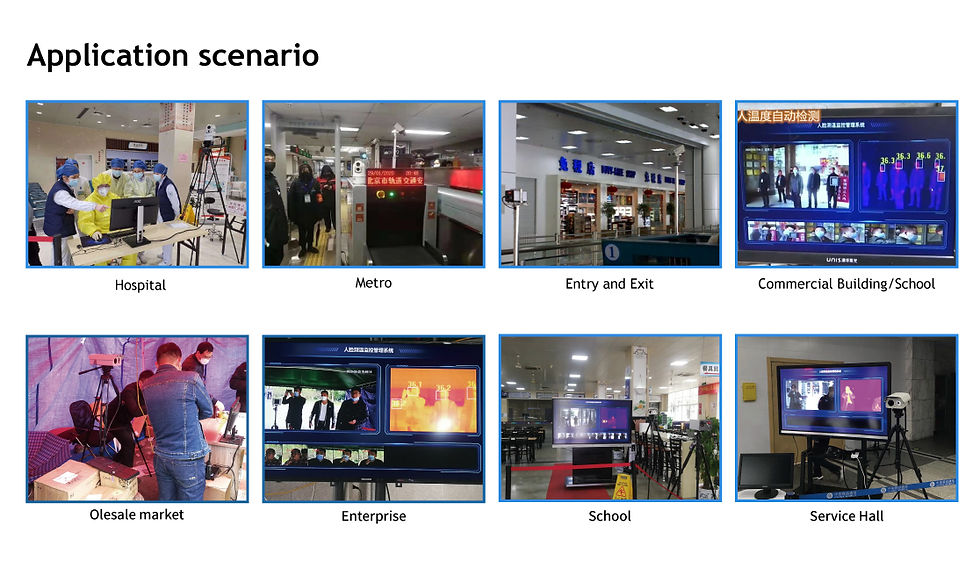

• Thermal & Optical Network Camera W-DM80S is a mid-range fever system offering suitable for public places such as a subway, airport, wharf, station, shopping mall and other places with high traffic.

• Automatic face detection and snapshot technology can accurately detect forehead temperature with an accuracy of ± 0.3°C.

• Thermal & Optical Network Camera W-DM80S has an automatic temperature algorithm based on AI technology and requires no intervention by onsite staff. Accurately identifis and counts the number of people passing by while quickly analyzing individual body temperature.

Quick Detection

• Large streams of people can be measured and detected within 0.1 seconds.

Sensitivity

• The temperature resolution of the instrument can reach ±0.3° C, which is suitable for long distance in high volume traffic areas.

Discrete Measurement

• Measurement can be carried out without the complete knowledge of the detected object.

Great User Experience

• Multi-visual presentation with strong operability, affinity, scientific, and technological capabilities.

​

Usage Types

• AI Identification

• Non-inductive temperature measurement

• High precision temperature measurement

• Face imaging capture

• Parameter adjustment

• Unattended option

• Automatic video and picture capture and storage

• Double-light imaging

​

The Specfications:

• Temperature Measurement Range:       20-50°c

• Accuracy:                                                  ±0.3°C

• Calibration:                                               Self-Calibration

• Measurement Distance:                           1.5-3m

• Resolution：                                             160*120

• People Per Second:                                  200 people in one minute

• Pixel Pitch:                                                 17μm

• Wavelength Range:                                  8~14μm

• NETD:                                                       ≤60mk@30°C

• FPS / HZ:                                                   50

• Focal Length:                                            Uncooled Microbolometer

• FOV:                                                           40°×30°

• Interface:                                                   RJ45, USB

• Network Standard:                                   Gigabit Network

• Protocol Supports:                                   Default UDP

• Resolution:                                                720P

• Input Power Supply:                                12VDC

• Size:                                                           L190mmxW90mmxH82mm

• out packing size:                                      L33CM* W22CM * H16CM

• weight:                                                      1.5KG
